Name: YY-121 Building Materials Difficult Flammability Test Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY121
Price: 25,000.00 USD
Availability: InStock

À la maison > produits > Équipement d'essai d'inflammabilité >

YY-121 Building Materials Difficult Flammability Test Equipment

flammability test equipment for building materials

difficult flammability testing equipment

building materials flammability tester

Lieu d'origine:

Chine

Nom de marque:

YUYANG

Certification:

Numéro de modèle:

YY121

Nous contacter

Demandez une citation

YY-121 Building Materials Difficult Flammability Test Equipment

Détails du produit

Débitmètre:

méthane: 5 ~ 45L / min réglable, air: 3 ~ 30L / min réglable, niveau de précision: 2,5 grade

Alimentation électrique:

380V AC 50Hz utilisant du gaz: méthane (pureté supérieure à 95%)

Thermocouple:

3,0 mm de diamètre et thermocouple blindé de 1,5 mm

diamètre de la buse du brûleur:

3,5 mm, dimensions: 200 x 200 (mm) du bas de 1000 mm

Source de gaz:

> 95% de gaz propane; （L'utilisateur doit se prévoir pour lui-même）

Pression de gaz:

10kpa~50kpa

Mettre en évidence:

flammability test equipment for building materials

difficult flammability testing equipment

building materials flammability tester

Conditions de paiement et d'expédition

Quantité de commande min

Définir / set

Prix

pending

Délai de livraison

Conditions de paiement

L / C, T / T

Capacité d'approvisionnement

Produits connexes

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Obtenez le meilleur prix

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Obtenez le meilleur prix

YY-121 Building Materials Difficult Flammability Test Equipment

Obtenez le meilleur prix

Vidéo

Sorbonne de sécurité biologique de classe II A2 avec profondeur de 780 mm

Obtenez le meilleur prix

Nous contacter

86-769-26622869

Contactez-nous maintenant

Description du produit

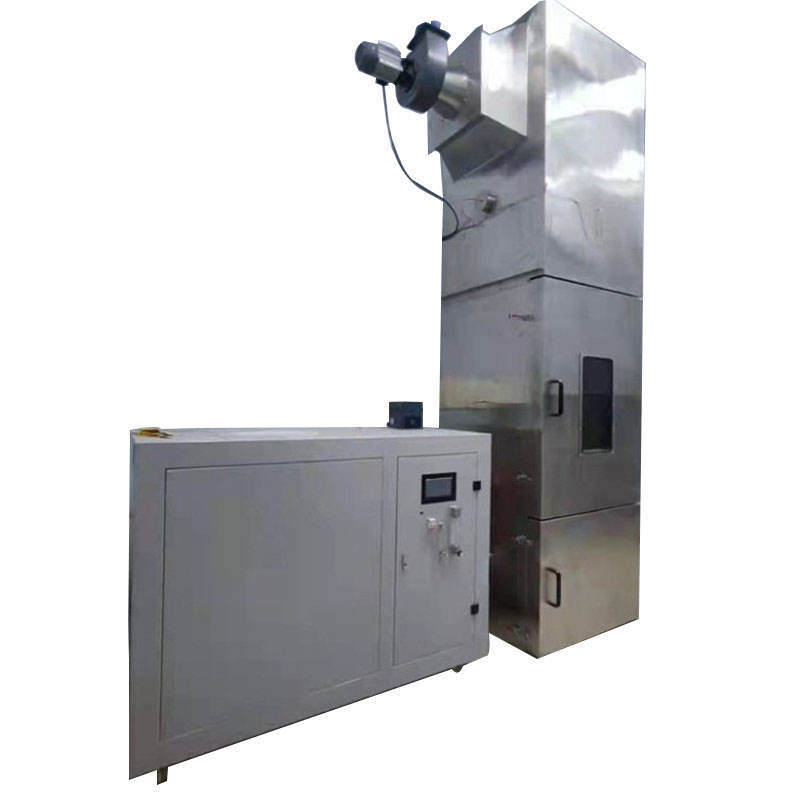

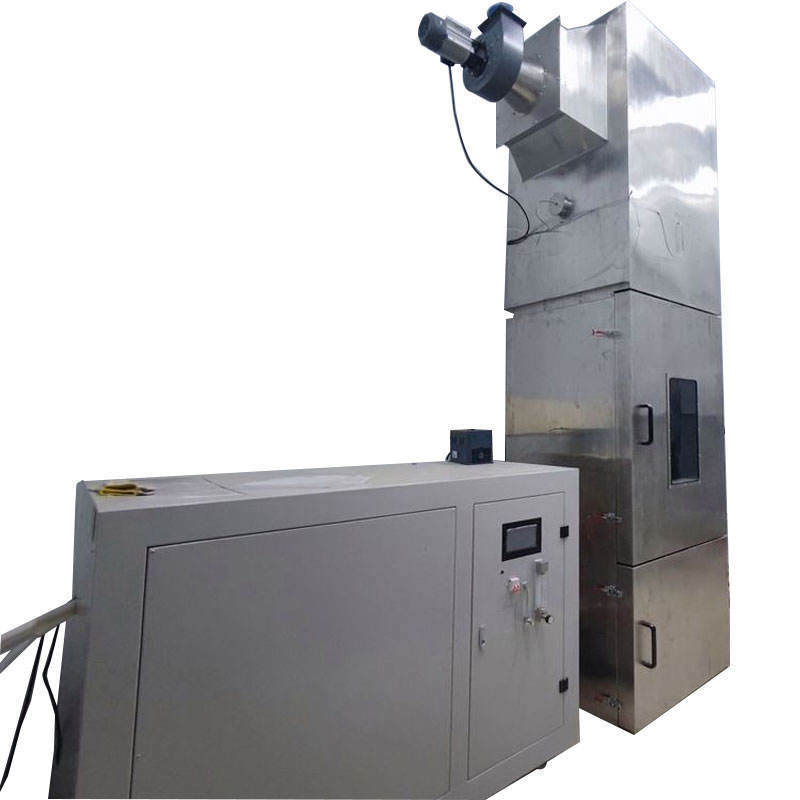

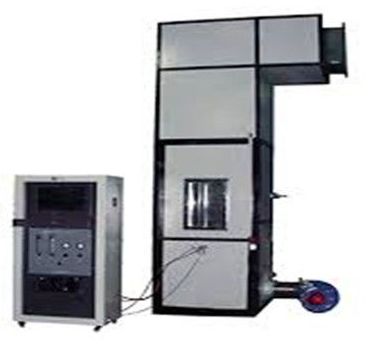

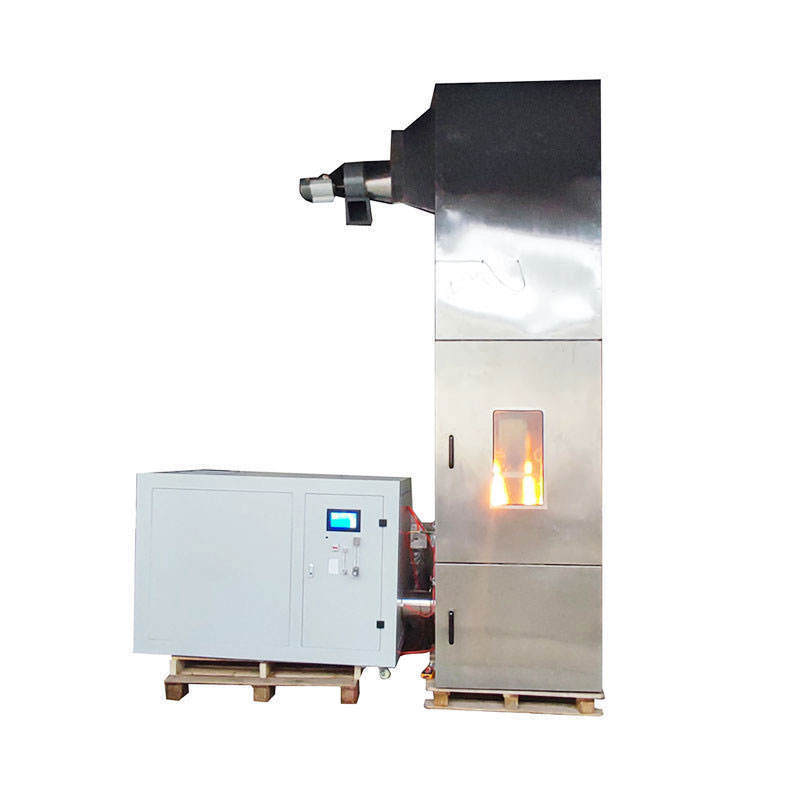

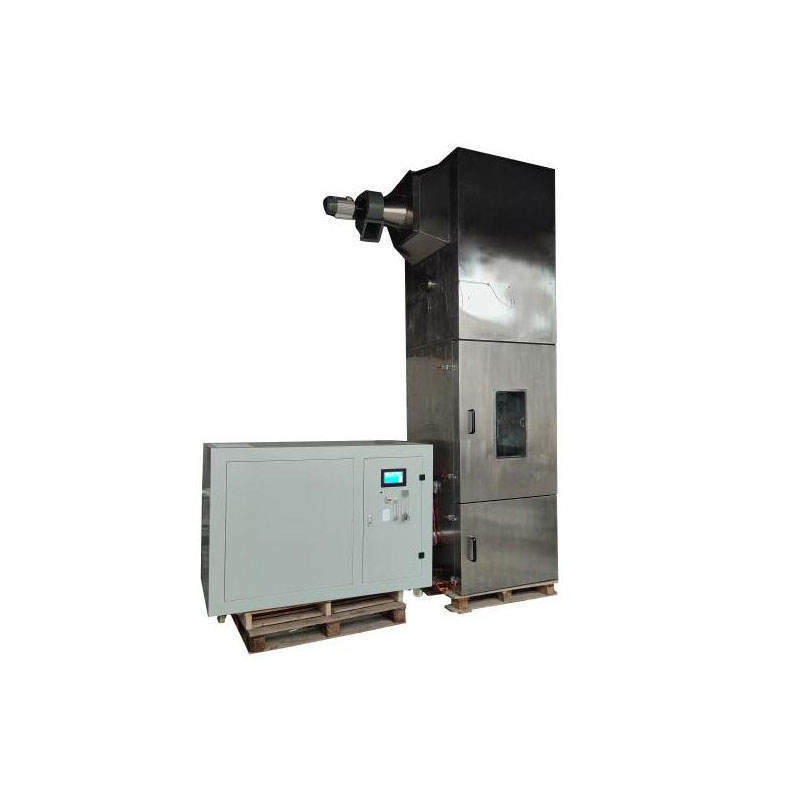

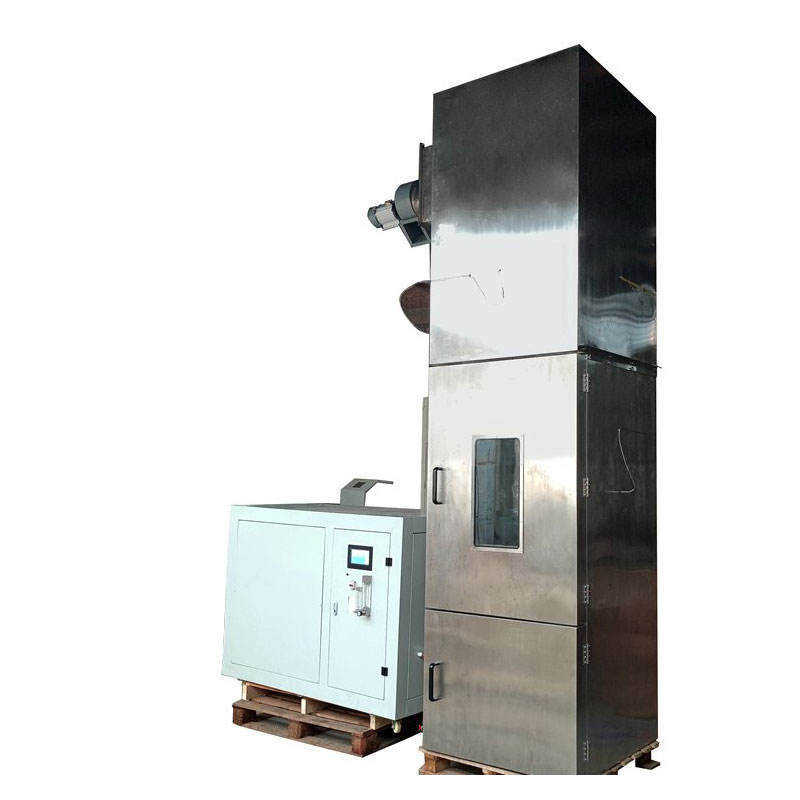

YY-121 Building Materials Difficult Flammability Test Equipment

The YY-121 Building Materials Difficult Flammability Test Apparatus is designed for flame retardant performance testing of building materials. This computer-controlled equipment offers high automation for accurate fire resistance performance evaluation.

Compliance Standards

GB/T 8625 Test method of difficult-flammability for building materials
DIN 4102-15 Fire behavior of building materials and elements Brandschach

Key Features

Complete burning shaft furnace system including combustion chamber, burner, specimen support, air current stabilizer, and flue
Computer-controlled operation for precise furnace temperature and pressure management
High degree of automation for consistent test results

Working Principle

The testing process begins with four conditioned specimens vertically fixed on the test bracket, forming a vertical square flue. The specimens are positioned at (250±2) mm intervals. A uniform airflow is created in the combustion chamber through a 200mm diameter pipeline, maintaining a constant rate of (10±1) m³/min at controlled temperature.

Gas flow is adjusted to (35±0.5) L/min and air flow to (17.5±0.2) L/min before automatic ignition. The 10-minute test concludes when either the average flue gas temperature exceeds 200°C across five thermocouples or the maximum measured value surpasses 200°C.

Technical Parameters

Parameter	Specification
Power supply	380V AC 50HZ
Gas requirement	Methane (purity > 95%)
Flow meter range	Methane: 5-45L/min, Air: 3-30L/min (2.5 grade precision)
Specimen size	190 x 1000mm (four specimens per test, thickness ≤80mm)
Thermocouple	3.0mm diameter and 1.5mm armored thermocouple
Burner specifications	Nozzle diameter: 3.5mm, dimensions: 200 x 200mm (positioned 1000mm from bottom)
Combustion furnace dimensions	1020 x 1020 x 3930mm (external), 800 x 800 x 2000mm (internal)
Weight	1 ton
